Professional Factory 1850°C MOSI2 U-Shaped Heating Element Customized

Place of Origin : China

MOQ : 1/pcs

Price : 5/usd/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000/pcs/month

Delivery Time : 3workdays

Packaging Details : Strong wooden box for Global shipping

Contact Now

Product Description

Professional Factory 1850°C MOSI2 U-Shaped Heating Element Customized

1800 mosi2 molybdenum boiler electric heater degree mosi2 heat element for industrial furnace made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 heating element rod has the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 elements is 1800°C. It can be made into various types, including U-type, W-type, right-angle as well as circular type.

Products Show

Molybdenum disilicide MoSi2 rod heating element size:
1.Diameter:3/6mm;6/12mm;9/18mm;12/24mm
2.length:from 150 to 700mm,customized is available .
3. Operation temperature: from 500C to 1800.C .
4.Rod shape : straight type ;U type ; W type ;L type and other special type
5.Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace .

How to order ?

Please tell us the following data of MoSi2 rod heating element
1.d = the diameter of hot zone ?
2.c = the diameter of cold zone ?
3.Le = the length of hot zone ?
4.Lu = the length of cold zone ?
How many pcs ?

Specification

Diameter of hot zone	Diameter of cold zone	Length of hot zone	Length of cold zone	Terminal center distance
3mm	6mm	80-300mm	80-500mm	25mm
4mm	9mm	80-350mm	80-500mm	25mm
6mm	12mm	80-800mm	80-1000mm	25-60mm
7mm	12mm	80-800mm	80-1000mm	25-60mm
9mm	18mm	100-1200mm	100-2500mm	40-80mm
12mm	24mm	100-1500mm	100-1500mm	40-100mm

Packing & Delivery

Packaging for cast in heater
1) plastic bag + carton for cast in heater
2) wooden box for cast in heater

Shipping for cast in heater
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available

Each heater use bubble bag and wrapped first

Choose the right box for the heaters

Exported Wooden case can protect the heaters very well

Product Application

Molybdenum heaters are utilized in various high-temperature applications due to their excellent thermal and mechanical properties. Here are some key application areas:

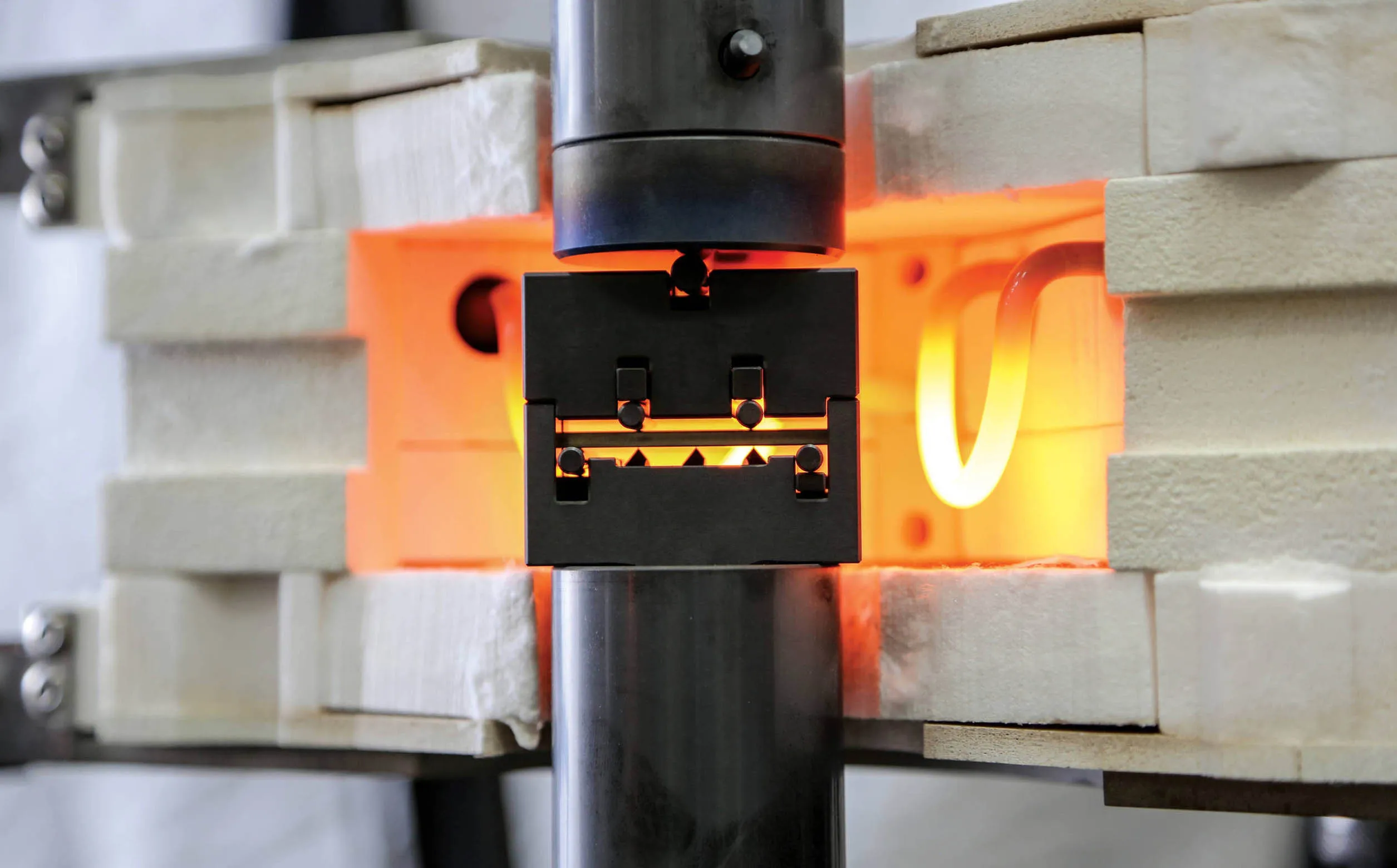

High Temperature Furnace

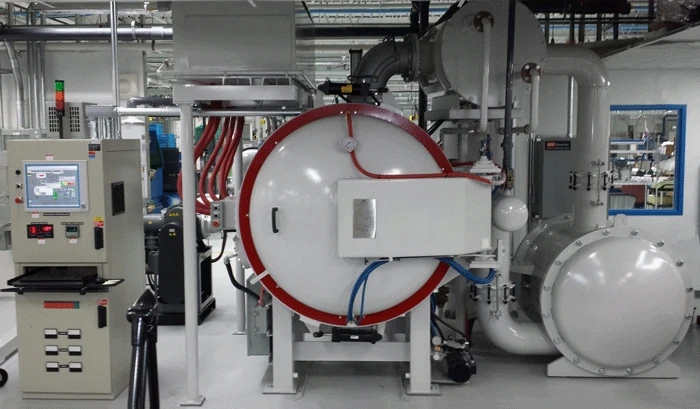

Vaccum Furnace

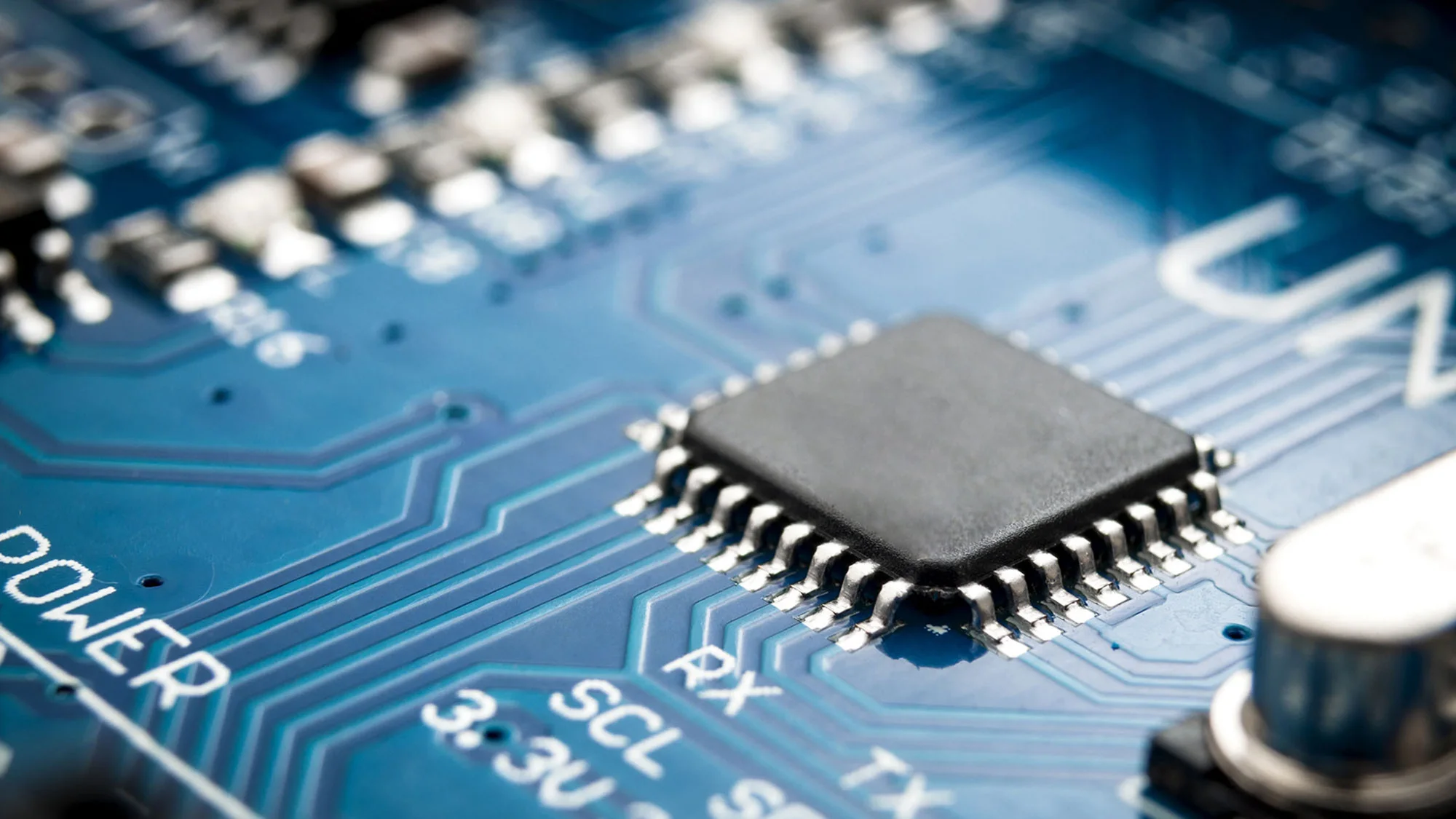

Semiconductor

Glass Melting

Lab Device

Aerospace

These applications highlight the versatility and importance of molybdenum heaters in industries that require reliable and efficient high-temperature heating solutions.
